Electronic Supplement to
Time and Space Distribution of Coseismic Slip of the 2011 Tohoku Earthquake as Inferred from Tsunami Waveform Data

by Kenji Satake, Yushiro Fujii, Tomoya Harada and Yuichi Namegaya

Table S1

Estimated slip for each subfault at 0.5 min interval

Subfault	0 min	0.5 min	1.0 min	1.5 min	2.0 min	2.5 min	3.0 min	3.5 min	4.0 min	4.5 min	5.0 min	Total
0A	0.0	0.0	0.0	0.0	0.0	0.0	1.2	4.4	4.3	0.8	0.0	10.7
0B	0.0	0.0	0.0	0.7	3.0	1.2	0.9	3.0	11.9	0.0	0.0	20.5
0C	0.0	0.0	0.0	0.6	3.4	6.3	10.6	13.9	1.2	0.0	0.0	36.1
0D	0.0	0.0	1.8	2.6	8.4	3.6	9.7	4.5	0.0	0.0	0.0	30.6
0E	0.0	0.0	6.2	5.4	10.6	6.1	18.0	5.7	0.0	0.0	0.0	51.9
0F	0.0	0.0	11.1	6.7	18.3	8.8	18.4	5.8	0.0	0.0	0.0	69.1
0G	0.0	0.0	4.5	4.5	1.1	0.0	14.7	6.8	0.0	0.0	0.0	31.7
0H	0.0	0.0	0.0	9.1	4.7	7.2	1.4	0.1	0.0	0.0	0.0	22.5
0I	0.0	0.0	0.0	0.0	0.0	0.0	0.3	0.4	0.0	0.0	0.0	0.8
0J	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	2.9	1.4	0.0	4.3
0K	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	1.7	3.6	0.7	5.9
1A	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.5	0.4	0.0	0.8
1B	0.0	0.0	0.0	0.5	0.9	0.0	0.4	0.9	0.3	0.0	0.0	3.0
1C	0.0	0.0	0.6	4.2	0.0	0.1	1.6	7.3	0.0	0.0	0.0	13.7
1D	0.0	0.0	0.7	5.1	4.5	0.8	9.2	2.1	0.0	0.0	0.0	22.4
1E	0.0	1.8	9.5	4.2	9.1	12.8	0.0	0.0	0.0	0.0	0.0	37.4
1F	0.0	1.0	5.1	1.5	7.3	0.0	0.0	0.0	0.0	0.0	0.0	14.9
1G	0.0	0.0	9.1	2.0	1.9	0.4	4.7	1.1	0.0	0.0	0.0	19.1
1H	0.0	0.0	1.3	8.8	0.0	0.0	0.0	0.0	0.0	0.0	0.0	10.1
1I	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
1J	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	1.2	0.6	0.0	1.8
1K	0.0	0.0	0.0	0.0	0.0	0.0	0.9	0.2	0.0	1.2	0.2	2.5
2A	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.9	0.4	0.0	1.3
2B	0.0	0.0	0.0	0.0	0.0	0.1	0.1	0.0	0.0	0.0	0.0	0.2
2C	0.0	0.0	0.8	2.1	0.8	0.0	1.0	1.9	0.0	0.0	0.0	6.7
2D	0.0	0.2	1.1	1.7	4.2	5.0	4.6	0.0	0.0	0.0	0.0	16.9
2E	0.0	0.0	0.0	14.1	0.0	12.4	0.0	0.0	0.0	0.0	0.0	26.6
2F	0.0	2.8	8.2	0.0	12.0	1.7	0.0	0.0	0.0	0.0	0.0	24.7
2G	0.0	0.3	3.0	7.0	0.0	1.3	6.4	0.0	0.0	0.0	0.0	18.1
2H	0.0	0.0	1.6	3.2	0.0	0.0	0.0	0.0	0.0	0.0	0.0	4.8
2I	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
2J	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.4	0.2	0.0	0.6
2K	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	2.0	0.4	2.3
3A	0.0	0.0	0.0	0.0	0.4	0.2	0.0	0.0	0.0	0.0	0.0	0.7
3B	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.5	0.5	0.0	0.0	1.1
3C	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
3D	0.0	0.0	0.0	0.0	1.4	7.9	3.8	0.0	0.0	0.0	0.0	13.1
3E	0.0	0.0	0.0	0.0	0.0	15.5	0.0	0.0	0.0	0.0	0.0	15.5
3F	0.0	0.0	0.0	0.0	10.8	10.8	0.0	0.0	0.0	0.0	0.0	21.6
3G	0.0	0.0	0.0	0.0	0.3	2.9	7.7	0.0	0.0	0.0	0.0	10.9
3H	0.0	0.0	3.5	7.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	10.5
3I	0.0	0.0	0.0	0.8	1.3	0.0	0.0	0.0	0.0	0.0	0.0	2.1
3J	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.1
3K	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	1.5	0.5	2.0
4A	0.0	0.0	0.0	0.0	0.5	0.4	0.0	0.0	0.0	0.0	0.0	0.8
4B	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
4C	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
4D	0.0	0.0	0.0	0.0	0.0	0.0	2.3	0.5	0.0	0.0	0.0	2.8
4E	0.0	0.0	0.0	0.1	0.5	0.3	1.5	0.0	0.0	0.0	0.0	2.4
4F	0.0	1.4	7.0	0.0	0.0	1.0	4.9	0.0	0.0	0.0	0.0	14.3
4G	0.0	0.0	0.0	0.0	0.0	0.1	2.1	0.5	0.0	0.0	0.0	2.7
4H	0.0	0.0	0.6	3.9	0.0	0.0	0.0	0.0	0.0	0.0	0.0	4.5
4I	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0
4J	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.7	2.0	0.0	2.8
4K	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	0.0	1.3	1.2	2.6

The slip amounts are in meter.

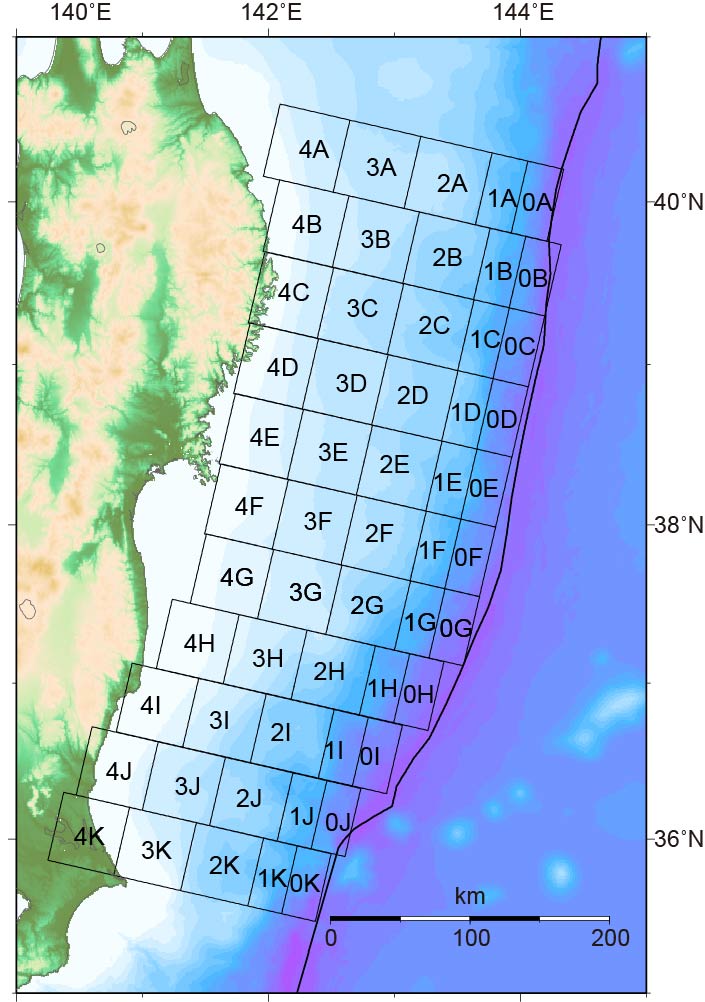

Index map of the subfaults.
